Chaoya company launched a 24V 36V BL6070 brushless motor for coffee machines and bean grinders, using 18V or 24V DC power supply operation, the motor is used in coffee machine, bean grinder, grinder and other household appliances, compared with other brushless motors, the BL6070 brushless motor diameter in 60mm, torque is relatively larger, suitable for the use of products with large torque demand. Beautiful appearance, can be external drive board. Super elegant can provide solutions or customization according to customer needs.
Chaoya has a 24V 36V BL6070 brushless motor for coffee machines and bean grinders, this 24V 36V BL6070 brushless motor for coffee machines and bean grinders which is used in coffee makers, bean grinders, grinders and other household appliances. Since these products require smooth operation during the grinding process and also have certain torque requirements, the 24V 36V BL6070 brushless motor for coffee machines and bean grinders is specially designed for this type of home appliances.

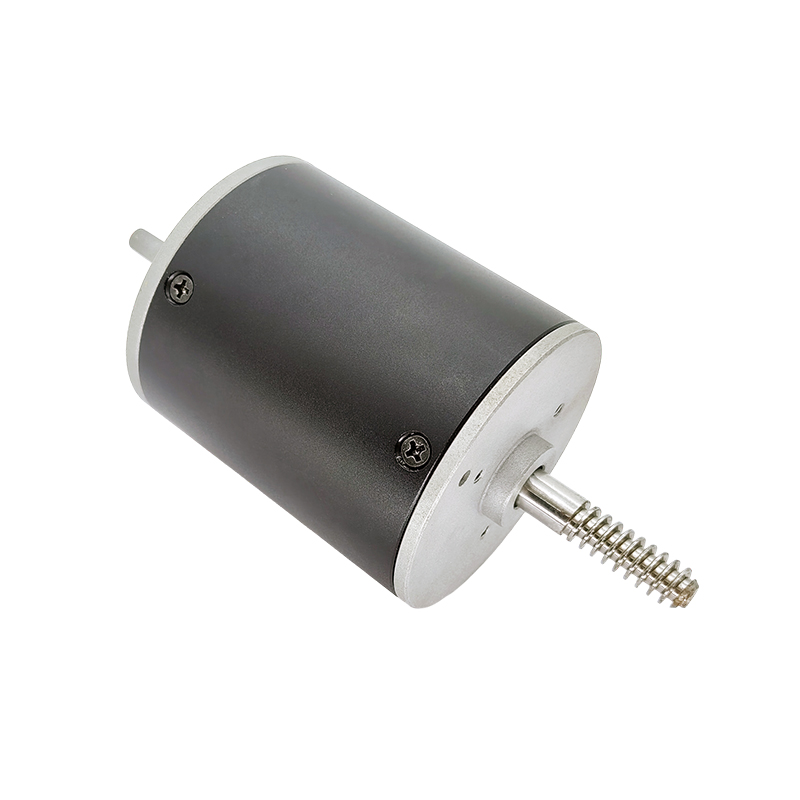

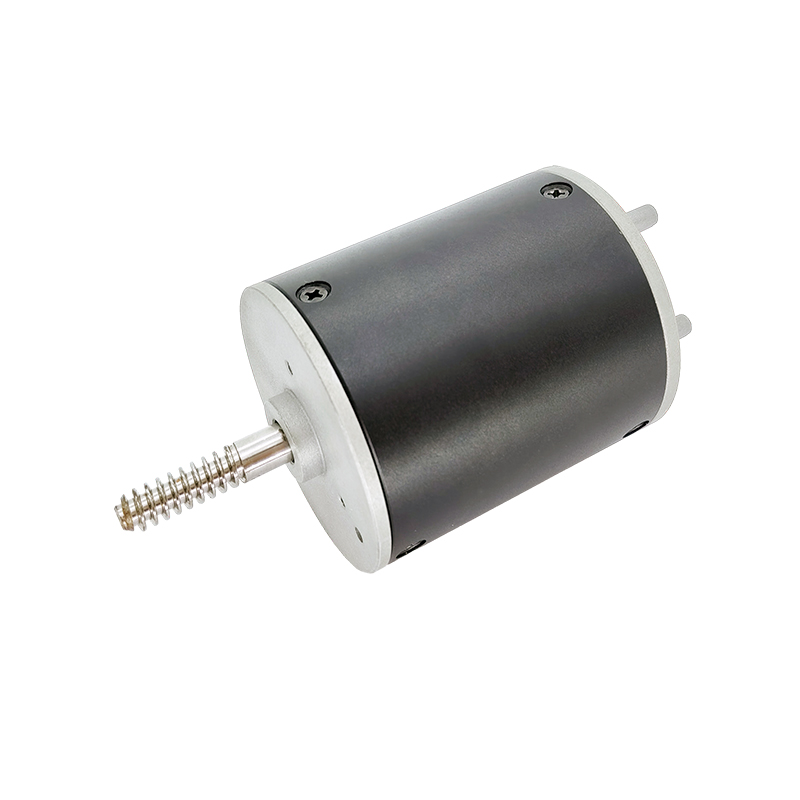

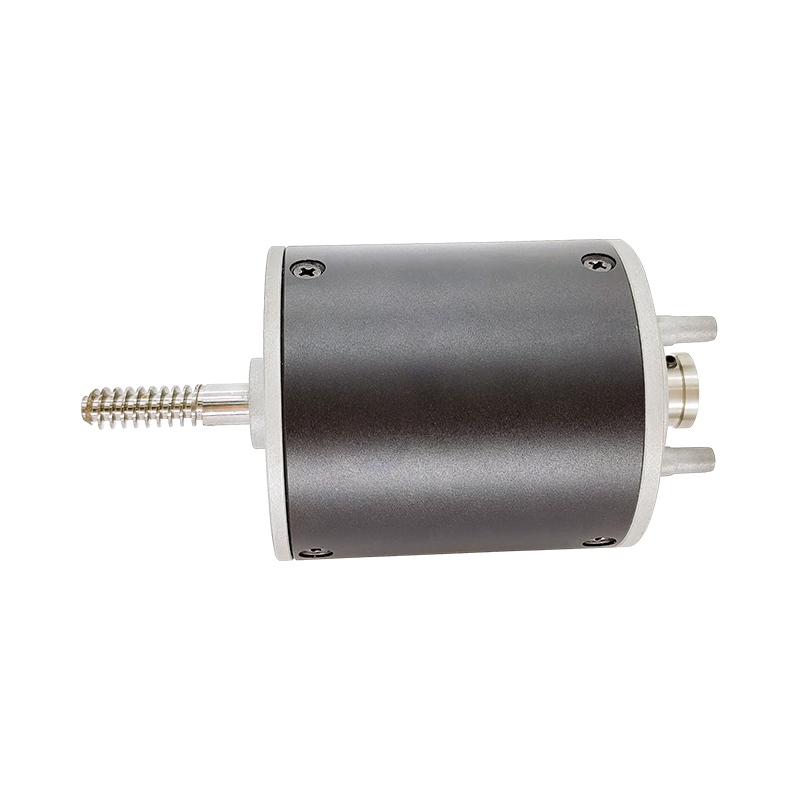

This 24V 36V BL6070 brushless motor for coffee machines and bean grinders from Chaoya adopts a finishing shell with a very beautiful appearance, has a diameter of 60mm, runs on 18V or 24V DC power supply, and has a relatively higher torque compared with other brushless motors. Smooth running process, with good performance.
ChaoYa's 24V 36V BL6070 brushless motor for coffee machines and bean grinders can be controlled by an external driver, and the performance parameters can be adjusted according to the customer's requirements to match the actual use of the customer's products. Customers are welcome to contact us if they have development projects or need to make technical adjustments to their products.
| No | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
| 14# | Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | ||
| BL6070HI | 18 | 0.33 | 3571 | 93.06 | 1.956 | 3055 | 29.77 | 85% | 322.28 | 5.959 | 1786 | 60.26 | 644.56 | 11.589 | CW/CCW |
| BL6070HI | 24 | 0.25 | 3600 | 114.15 | 1.819 | 3165 | 37.83 | 86% | 472.32 | 6.742 | 1800 | 89.03 | 944.63 | 13.23 | CW/CCW |
